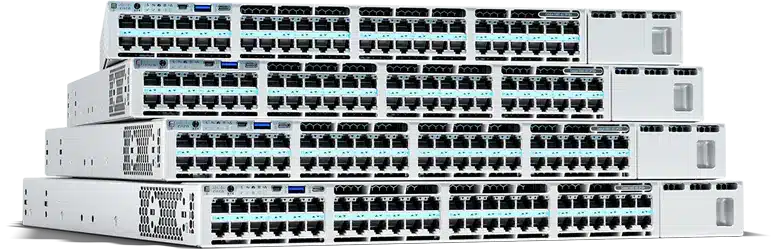

In many companies, Cisco components, including switches, are used for networking. However, when Cisco switches stop working, you may be at a loss to understand the reason. What if the devices drop off the network, leaving you with a device light blinking that doesn’t match anything in the manual?
The good thing is that most Cisco switch problems have straightforward causes. So, once you know where to look, they’re easier to fix than they appear. Let us have a deeper look at the root of common problems:
The switch has power, but nothing can connect
To check, see if the cable is properly seated at both ends. If the port does not show a link light, that can hint at a physical-layer problem — a bad cable, the wrong cable type, or a failed NIC, for example. You may try using a new cable and a different port before assuming the switch is malfunctioning.
If the port light is on but the device still can’t function, it may be due to a VLAN mismatch or a misconfigured access port. Show the interface status to confirm the port is connected and in the right VLAN.
PoE devices do not power up
What if you see that IP phones, access points, or cameras are plugged in but not turning on? There can be three reasons.
- The port’s PoE is disabled, and to check, show interfaces [port] status and check the config.
- Every switch has a maximum power output shared across all PoE ports. If the limit is overrun, new devices won’t receive power.
- Not all ports on a Cisco switch support PoE.
The switch is sluggish
What if you find video calls stuttering? Then show interfaces [port] and look at the error counters. There can be Input errors, CRC errors, and output drops.
- CRC errors mean there is a bad cable or a duplex mismatch in the network.
- Input errors can hint at physical layer issues.
- Output drops mean the port is overpowered with more traffic than it can handle.Â
The switch is rebooting continuously
Do you find the switch is in a reboot loop? That can be harder to diagnose. Run the show version to see the reason for the last reload. Common factors are software crashes, power issues, and watchdog timeouts.
First, check the power supplies and the IOS version. Then pull the crash file for an in-depth analysis.
Large Hadron Collider Switches On
Spanning tree is causing loops
STP-related problems are disruptive because they can affect the entire network. If you see network-wide slowdowns and broadcast storms, begin with the show spanning-tree command. Look for topology change notifications. There can be a loop somewhere in the physical cabling or a misconfigured edge port.
When to seek help?
There can be many other types of problems with these switches, and you may need professional help over time. If you see recurring hardware errors that don’t clear after a reload, don’t delay and raise a Cisco TAC case. Keep the troubleshooting data ready for a quick resolution.
